Complicated Mechanical movement Mechanisms Explained with GIFs

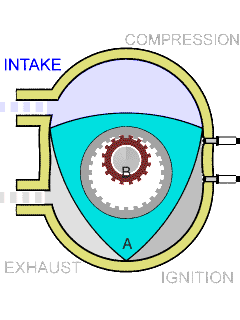

Rotary Engine:
Also called wankel engine. Converts pressure into rotation motion instead of reciprocating pistons. found in cars like the mazda RX-7.



Radial Engines:

Used in aircrafts having propeller connected to the shaft delivering power in order to produce thrust its basic mechanism is as follows


Steam Engine:
once used in locomotives. Based on the reciprocating principle.


Sewing Machine


Maltese Cross Mechanism:

used in clocks to power second hand movement


Manual Transmission:


Constant Velocity Joint: used in front wheel drive cars


Torpedo Boat Destroyer System:
used on naval military operations
